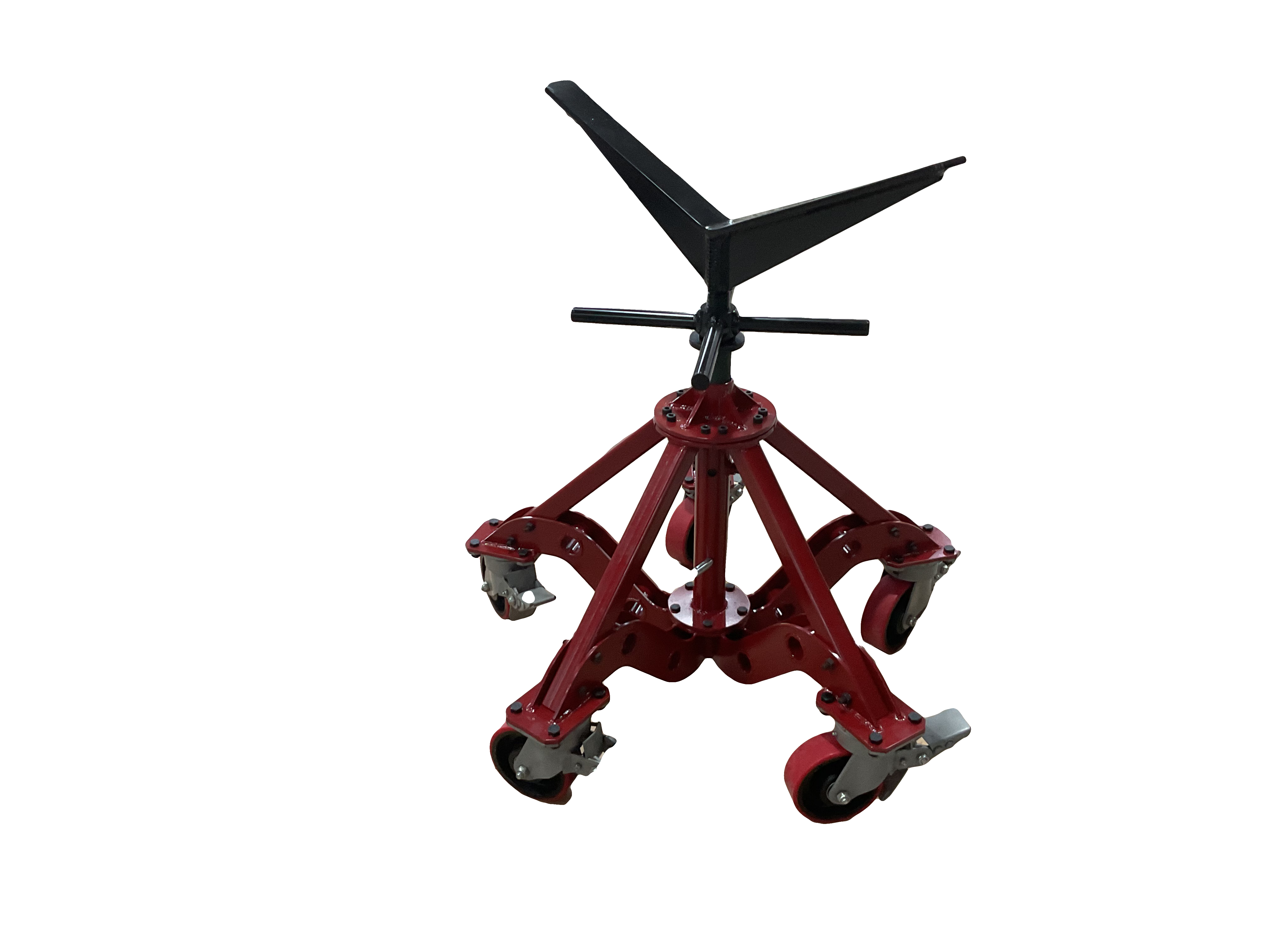

PH-Groundhog Rolling Pipe Stand – Model PH-GH
- Five-leg low centre of gravity base for superior stability
- Maximum working Load 9000 LB (4,082 kg)
- Heavy-duty swivel casters and locking brakes

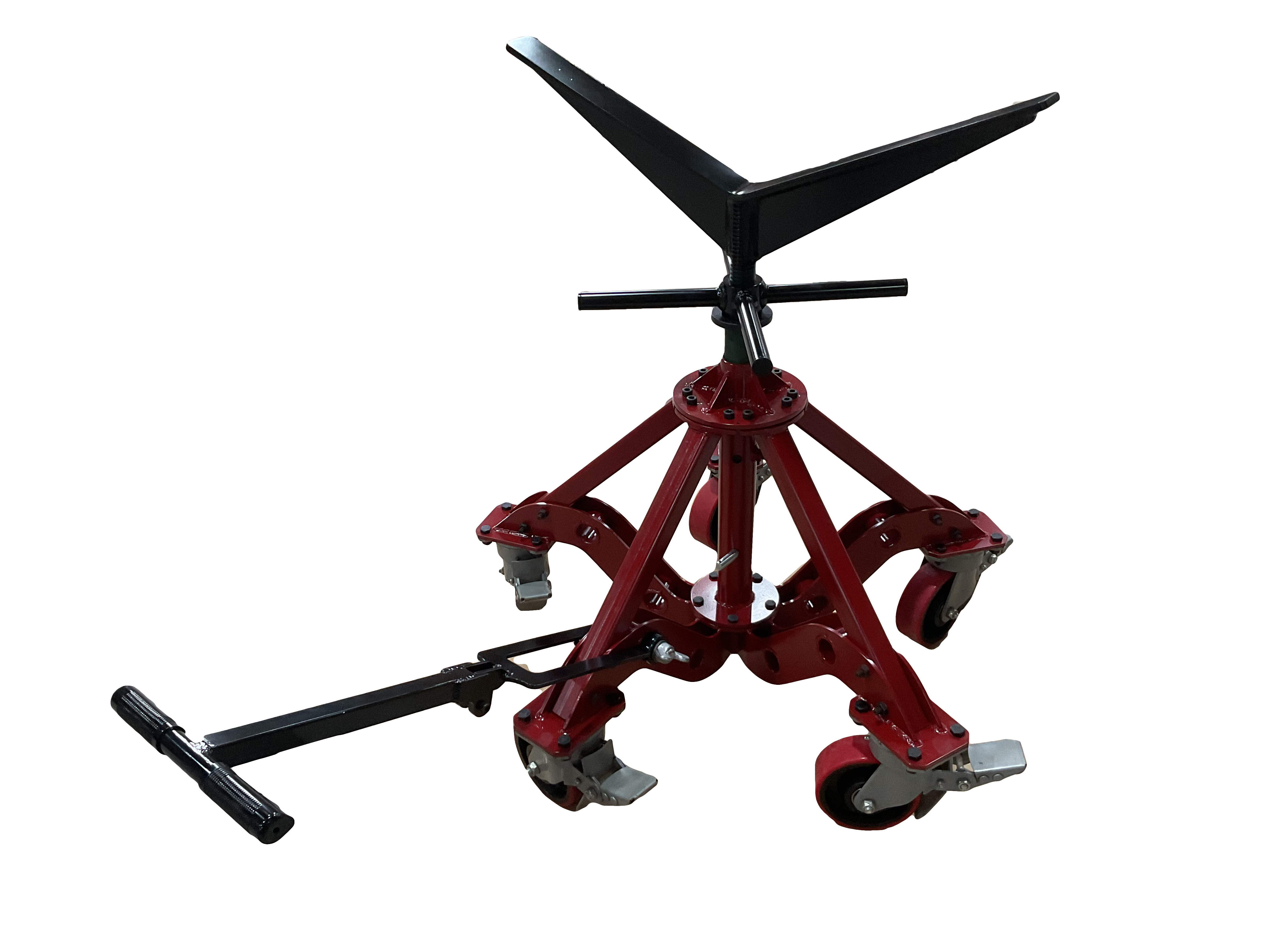

- Clip in tow bar allows lateral force to be applied low, improving stability during movement
- Compatible with PH-HD32V and PH-HD36V stand heads (sold separately)
- Accepts PH-PR230 pipe roller attachment (sold seperately)
- Height range including V-Head 36”-59” (914-1499mm)
- Positive load locking pin
The PH Groundhog is a high-capacity rolling pipe stand designed for maximum stability, safe movement, and long service life in demanding fabrication and pipeline environments.
It’s low centre-of-gravity, five-leg base provides exceptional resistance to tipping, while industrial swivel casters with foot brakes allow the stand to be repositioned smoothly, even when loaded. A clip-in tow bar enables controlled movement by allowing lateral force to be applied low at the base, helping reduce tipping risk and improving operator safety during repositioning.
The adjustable centre post accepts multiple support and roller configurations, making the PH Groundhog a versatile platform for a wide range of pipe handling tasks.
Javelin pipe stands and interchangeable heads are workpiece positioning systems designed to raise, lower, align, level, rotate, and securely hold pipe and other fabrication materials for use with welding, cutting, machining, and used with many other machine tools and fabrication equipment.
TO FIND A DISTRIBUTOR NEAR YOU CLICK HERE
CALL FREE OR EMAIL IF YOU CAN’T FIND A DISTRIBUTOR NEAR YOU
Specs
| SPECS | IMPERIAL | METRIC | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Working Load | 9000 LB | 4082 KG | ||||||||||||||||||
| Base Width | 37″ | 949 mm | ||||||||||||||||||
| Height range includes V-head | 32″-51″ | 810-1292mm | ||||||||||||||||||
| Weight not incl.V-head | 183 LB | 83 KG | ||||||||||||||||||
| Shipping weight | 52.54 LB | 23.8 KG | ||||||||||||||||||
| Shipping Size |
|
|
||||||||||||||||||
