Portable 8 inch Chuck Spinner (with fine adjustment)
Main
PCS8-ADJ

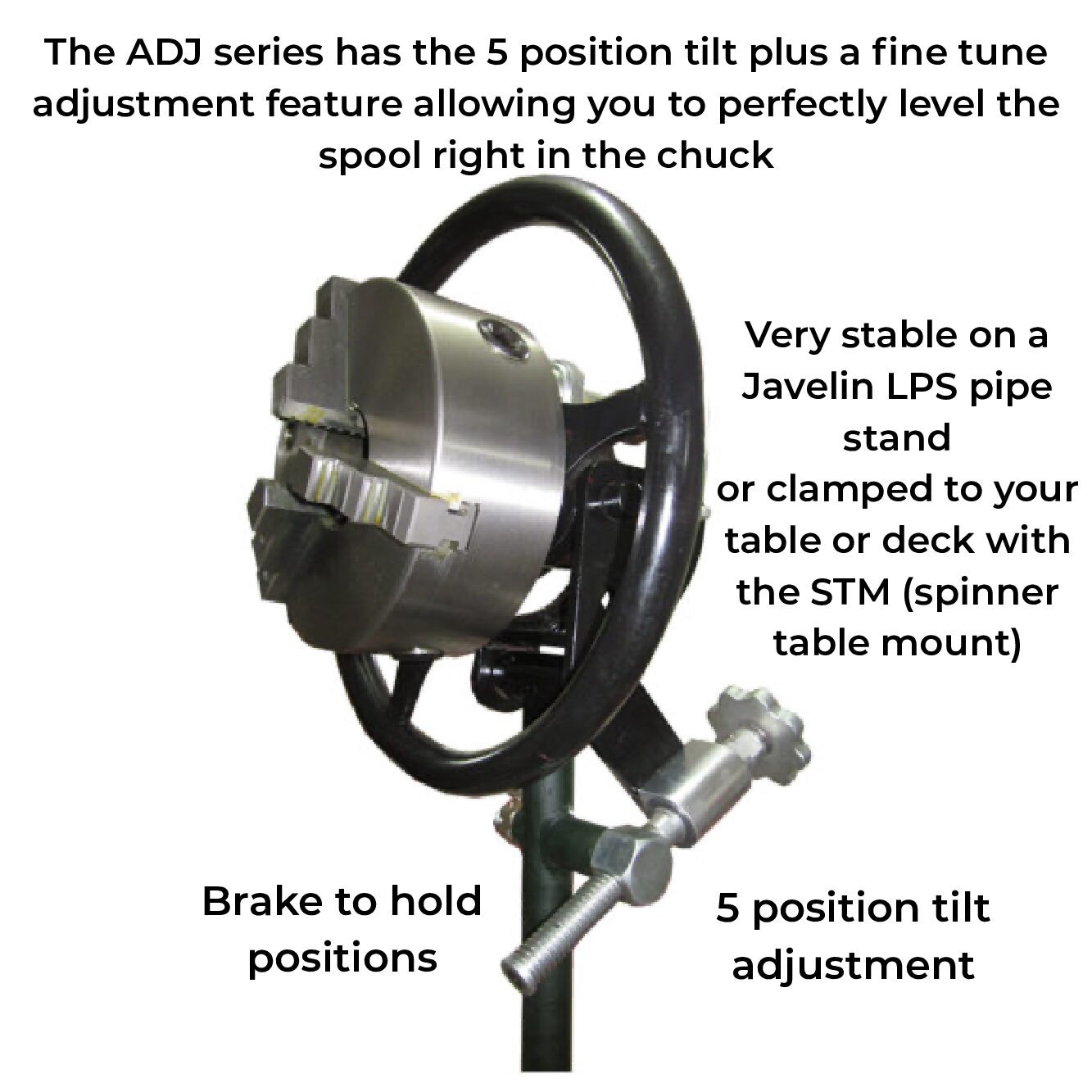

- The ADJ series has the 5 position tilt plus a fine tune adjustment feature allowing you to perfectly level the spool right in the chuck
- 6” or 8” self centering 3 jaw chucks
(with extra sets of inside and outside jaws) - 5 position tilt adjustment
- Brake to hold positions
- Dual bearing spindle to ensure positive ground
(prevent arcing) - Very stable on a Javelin LPS pipe stand
or clamped to your table or deck with the STM (spinner table mount) - Engineer certified and rated for 350 LB at the chuck face
- 6” PCS will handle 1/4” to 8” pipe
- 8” PCS will handle 1/4” to 10” pipe
- Pipe stand sold separately
Javelin pipe stands and interchangeable heads are workpiece positioning systems designed to raise, lower, align, level, rotate, and securely hold pipe and other fabrication materials for use with welding, cutting, machining, and used with many other machine tools and fabrication equipment.
TO FIND A DISTRIBUTOR NEAR YOU CLICK HERE
CALL FREE OR EMAIL IF YOU CAN’T FIND A DISTRIBUTOR NEAR YOU
Specs
| SPECS | IMPERIAL | METRIC | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Working Load | 350.00 LB | 159.0 KG | ||||||||||||||||||
| Weight | 58.50 LB | 26.5 KG | ||||||||||||||||||
| Shipping weight | 64.02 LB | 29 KG | ||||||||||||||||||
| Shipping Size |
|
|
||||||||||||||||||
